Page 17 - Color Catalogue July 2025

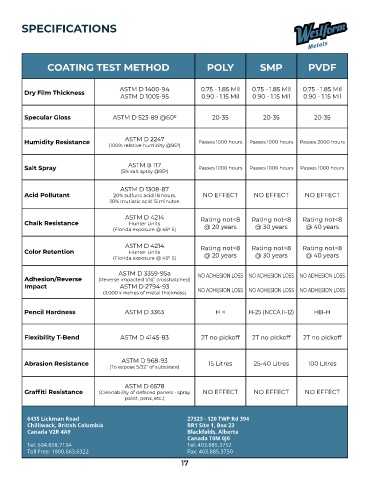

SPECIFICATIONS

COATING TEST METHOD POLY SMP PVDF

ASTM D 1400-94 0.75 - 1.85 Mil 0.75 - 1.85 Mil 0.75 - 1.85 Mil
Dry Film Thickness
ASTM D 1005-95 0.90 - 1.15 Mil 0.90 - 1.15 Mil 0.90 - 1.15 Mil

Specular Gloss ASTM D 523-89 @600 20-35 20-35 20-35

Humidity Resistance ASTM D 2247 Passes 1000 hours Passes 1000 hours Passes 2000 hours
(100% relative humidity @950)

ASTM B 117
Salt Spray (5% salt spray @950) Passes 1000 hours Passes 1000 hours Passes 1000 hours

ASTM D 1308-87
Acid Pollutant 20% sulfuric acid 18 hours, NO EFFECT NO EFFECT NO EFFECT
10% muriatic acid 15 minutes

ASTM D 4214 Rating not<8 Rating not<8 Rating not<8
Chalk Resistance Hunter Units
(Florida exposure @ 450 S) @ 20 years @ 30 years @ 40 years

ASTM D 4214 Rating not<8 Rating not<8 Rating not<8
Color Retention Hunter Units
(Florida exposure @ 450 S) @ 20 years @ 30 years @ 40 years

ASTM D 3359-95a NO ADHESION LOSS NO ADHESION LOSS NO ADHESION LOSS
Adhesion/Reverse (Reverse impacted 1/16” crosshatched)
Impact ASTM D 2794-93
(3,000 x inches of metal thickness) NO ADHESION LOSS NO ADHESION LOSS NO ADHESION LOSS

Pencil Hardness ASTM D 3363 H < H-25 (NCCA II-12) HB-H

Flexibility T-Bend ASTM D 4145-83 2T no pickoff 2T no pickoff 2T no pickoff

Abrasion Resistance ASTM D 968-93 15 Litres 25-40 Litres 100 Litres
(To expose 5/32” of substrate)

ASTM D 6578
Graffiti Resistance (Cleanability of defaced panels - spray NO EFFECT NO EFFECT NO EFFECT
paint, pens, etc.)
