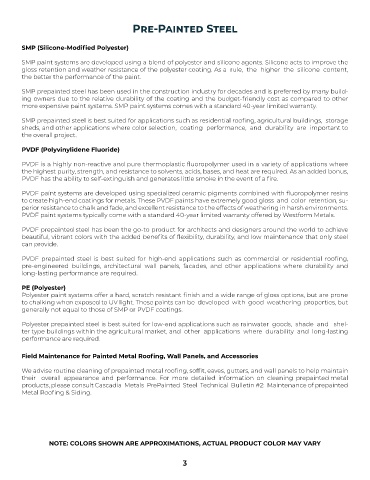

Pre-Painted Steel



        SMP (Silicone-Modified Polyester)

        SMP paint systems are developed using a blend of polyester and silicone agents. Silicone acts to improve the
        gloss retention and weather resistance of the polyester coating. As a  rule,  the  higher  the  silicone  content,
        the better the performance of the paint.

        SMP prepainted steel has been used in the construction industry for decades and is preferred by many build-
        ing owners due to the relative durability of the coating and the budget-friendly cost as compared to other
        more expensive paint systems. SMP paint systems comes with a standard 40-year limited warranty.

        SMP prepainted steel is best suited for applications such as residential roofing, agricultural buildings,  storage
        sheds, and other applications where color selection,  coating  performance,  and  durability  are  important to
        the overall project.

        PVDF (Polyvinylidene Fluoride)

        PVDF is a highly non-reactive and pure thermoplastic fluoropolymer used in a variety of applications where
        the highest purity, strength, and resistance to solvents, acids, bases, and heat are required. As an added bonus,
        PVDF has the ability to self-extinguish and generates little smoke in the event of a fire.

        PVDF paint systems are developed using specialized ceramic pigments combined with fluoropolymer resins
        to create high-end coatings for metals. These PVDF paints have extremely good gloss  and  color  retention, su-
        perior resistance to chalk and fade, and excellent resistance to the effects of weathering in harsh environments.
        PVDF paint systems typically come with a standard 40-year limited warranty offered by Westform Metals.
        PVDF prepainted steel has been the go-to product for architects and designers around the world to achieve
        beautiful, vibrant colors with the added benefits of flexibility, durability, and low maintenance that only steel
        can provide.
        PVDF prepainted steel is best suited for high-end applications such as commercial or residential roofing,
        pre-engineered buildings, architectural wall panels, facades, and other applications where durability and
        long-lasting performance are required.
        PE (Polyester)
        Polyester paint systems offer a hard, scratch resistant finish and a wide range of gloss options, but are prone
        to chalking when exposed to UV light. These paints can be  developed  with  good  weathering  properties, but
        generally not equal to those of SMP or PVDF coatings.

        Polyester prepainted steel is best suited for low-end applications such as rainwater  goods,  shade  and   shel-
        ter type buildings within the agricultural market, and  other  applications  where  durability  and  long-lasting
        performance are required.

        Field Maintenance for Painted Metal Roofing, Wall Panels, and Accessories


        We advise routine cleaning of prepainted metal roofing, soffit, eaves, gutters, and wall panels to help maintain
        their    overall  appearance  and  performance.  For  more  detailed  information  on  cleaning  prepainted metal
        products, please consult Cascadia  Metals  PrePainted  Steel  Technical  Bulletin #2:  Maintenance of prepainted
        Metal Roofing & Siding.








                 NOTE: COLORS SHOWN ARE APPROXIMATIONS, ACTUAL PRODUCT COLOR MAY VARY
