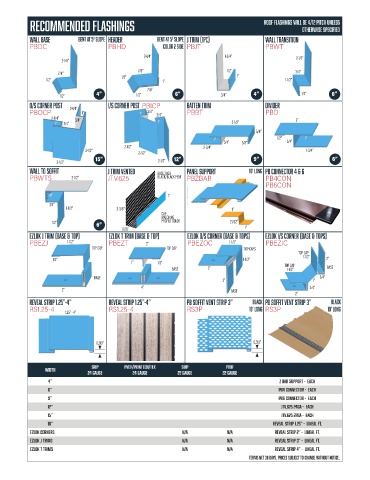

Page 49 - Westform Product Catalogue July 2025 Public

Recommended flashings Roof flashings will be 4/12 pitch unless
otherwise specified
wall base BENT AT 5 SLOPE HEADER BENT AT 5 SLOPE J TRIM (1PC) WALL TRANSITION
0
0
PBDC PBHD COLOR 2 SIDE PBJT PBWT
2-1/4” 1-3/4” 2-1/2”
2-1/8”
7/8” 7/8” 1/2” 1” 3/4”
1/2” 1/2” 1” 1-1/2”
7/8”
1/2” 4” 1/2” 6” 3/4” 4” 1/2” 6”
O/S CORNER POST 2-1/4” I/S CORNER POST PBICP BATTEN TRIM DIVIDER
PBOCP 1” 1” 3/4” 3/4” PBBT PBD
2-1/4” 3/4” 2”
1” 3/4” 1” 3-1/2”
5/8”
1” 3/4” 1/2” 3/4” 1”
2-1/2” 2-3/4” 3/8”
3-1/2” 2-1/2” 1-3/4”
15” 2-1/2” 12” 9” 6”
3-1/2”
WALL TO SOFFIT J TRIM VENTED BASE 26GA PANEL SUPPORT 10’ LONG PB CONNECTOR 4 & 6
PBWTS 2-1/2” JTV.625 BLACK/BLACK PERF PBZBAR PB4CON
PB6CON

3/4” 1”
3/4”
1-1/2” 2-3/8” 1”
CAP
MATCHING
1/2” 6” PROFILE COLOR 21/32”
11/16” 1”
EZLOK J TRIM (BASE & TOP) EZLOK T TRIM (BASE & TOP) EZLOK O/S CORNER (BASE & TOPS) EZLOK I/S CORNER (BASE & TOPS)
PBEZJ 1-1/2” PBEZT 2” PBEZOC 1-1/2” PBEZIC
TOP CAP TOP CAP TOP CAPS
TOP CAP
1/2” 1” 1/2” 1-1/2” 1-1/2” 2”
BASE 2” TOP CAP BASE
1-1/2”
BASE 2” 1” 3/4”
4” 3/4”
2” BASE 2”

REVEAL STRIP 1.25”-4” REVEAL STRIP 1.25”-4” PB SOFFIT VENT STRIP 3” BLACK PB SOFFIT VENT STRIP 3” BLACK
RS1.25-4 1.25” - 4” RS1.25-4 RS3P 10’ LONG RS3P 10’ LONG

0.319” 0.319”

SMP PVDF/Printech/TEX SMP PVDF
width
24 gauge 24 gauge 22 gauge 22 gauge
4” Z BAR SUPPORT - Each
6” PB4 CONNECTOR - EACH
9” PB6 CONNECTOR - EACH
12” JTV.625 24ga - Each
15” JTV.625 22ga - Each
18” Reveal strip 1.25” - lineal ft.
EZLOK CORNERS n/a n/a Reveal strip 2” - lineal ft.
EZLOK J TRIMS n/a n/a Reveal strip 3” - lineal ft.
EZLOK T TRIMS n/a n/a Reveal strip 4” - lineal ft.
terms net 30 days. prices subject to change without notice.
