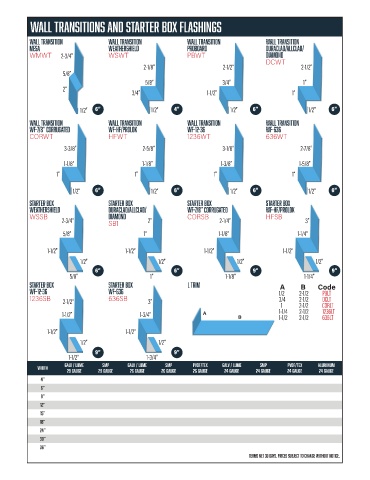

Page 73 - Westform Product Catalogue July 2025 Public

Wall transitions and starter box flashings

Wall transition Wall transition Wall transition Wall transition
MESA WEATHERSHIELD PROBOARD DURACLAD/ALLCLAD/
WMWT 2-3/4” WSWT PBWT DIAMOND

2-1/8” 2-1/2” DCWT 2-1/2”
5/8”
5/8” 3/4” 1”
2” 3/4” 1-1/2” 1”

1/2” 6” 1/2” 4” 1/2” 6” 1/2” 6”
Wall transition Wall transition Wall transition Wall transition
WF-7/8” CORRUGATED WF-HF/PROLOK WF-12-36 WF-636
CORWT HFWT 1236WT 636WT

3-3/8” 2-5/8” 3-1/8” 2-7/8”

1-1/8” 1-1/8” 1-3/8” 1-5/8”
1” 1” 1” 1”

1/2” 4” 6” 1/2” 6” 1/2” 6” 1/2” 6”

STARTER BOX STARTER BOX STARTER BOX STARTER BOX
WEATHERSHIELD DURACLAD/ALLCLAD/ WF-7/8” CORRUGATED WF-HF/PROLOK
WSSB 2-3/4” DIAMOND 2” CORSB 2-1/4” HFSB 3”
SB1
5/8” 1” 1-1/8” 1-1/4”

1-1/2” 1-1/2” 1-1/2” 1-1/2”
1/2” 1/2” 1/2” 1/2”
6” 6” 9” 9”
5/8” 1” 1-1/8” 1-1/4”
STARTER BOX STARTER BOX L trim A B Code
WF-12-36 WF-636 1/2 2-1/2 PBLT
1236SB 2-1/2” 636SB 3” 3/4 2-1/2 DCLT
1 2-1/2 CORLT
1-1/2” 1-3/4” A B 1-1/4 2-1/2 1236LT
1-1/2 2-1/2 636LT
1-1/2” 1-1/2”

1/2” 1/2”
9” 9”
1-1/2” 1-3/4”
Galv / lume smp Galv / lume smp pvdf/tex Galv / lume smp pvdf/tex aluminum
width
29 gauge 29 gauge 26 gauge 26 gauge 26 gauge 24 gauge 24 gauge 24 gauge 24 gauge
4”
6”
9”
12”
15”
18”
24”
30”
36”
terms net 30 days. prices subject to change without notice.
