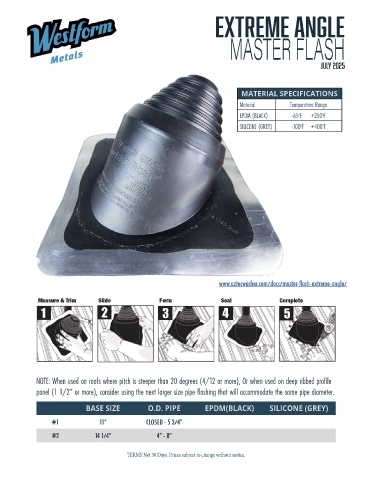

Page 91 - Westform Product Catalogue July 2025 Public
P. 91
Extreme Angle
MASTER FLASH
JULY 2025
MATERIAL SPECIFICATIONS
Material Temperature Range
o
o
EPDM (BLACK) -65 F +250 F
SILICONE (GREY) -100 F +400 F
o
o
www.aztecwasher.com/docs/master-flash-extreme-angle/
NOTE: When used on roofs where pitch is steeper than 20 degrees (4/12 or more), Or when used on deep ribbed profile
panel (1 1/2” or more), consider using the next larger size pipe flashing that will accommodate the same pipe diameter.
BASE SIZE O.D. PIPE EPDM(BLACK) SILICONE (GREY)
#1 11” CLOSED - 5 3/4”
#2 14 1/4” 4” - 8”
TERMS Net 30 Days. Prices subject to change without notice.
