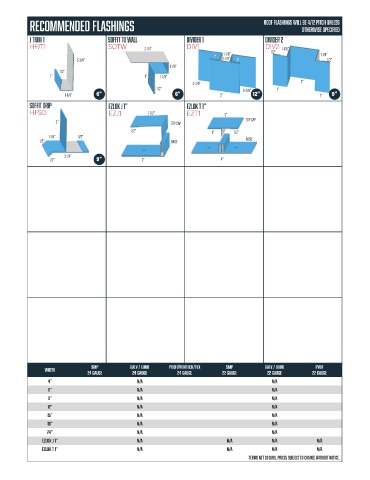

Page 29 - Westform Product Catalogue July 2025 Public

Recommended flashings Roof flashings will be 4/12 pitch unless
otherwise specified
J TRIM 1 SOFFIT TO WALL DIVIDER 1 DIVIDER 2
HFJT1 SOTW 2-1/4” DIV1 DIV2 1-1/8”
1” 1-1/8” 1/2” 1-1/8”
3-3/8” 1-1/8” 1” 1/2”
1-1/8”
1/2”
1” 1” 1-1/8”
2-3/8” 2”
1/2” 2-3/8” 1”
1-1/8” 6” 6” 3” 12” 1” 9”
SOFFIT DRIP EZLOK J 1” EZLOK T 1”
HFSD EZJ1 1-1/2” EZT1 2”
3” TOP CAP TOP CAP
1/2” 1” 1/2”
1-1/4” 1/2”
1/2” BASE BASE

3-1/4”
1/2” 9” 2” 4”

SMP Galv / lume PVDF/printech/TEX SMP Galv / lume PVDF
width
24 gauge 24 gauge 24 gauge 22 gauge 22 gauge 22 gauge
4” N/A N/A
6” N/A N/A
9” N/A N/A
12” N/A N/A
15” N/A N/A
18” N/A N/A
24” N/A N/A
EZLOK J 1” N/A n/a n/a n/a
EZLOK T 1” N/A n/a n/a n/a
terms net 30 days. prices subject to change without notice.
