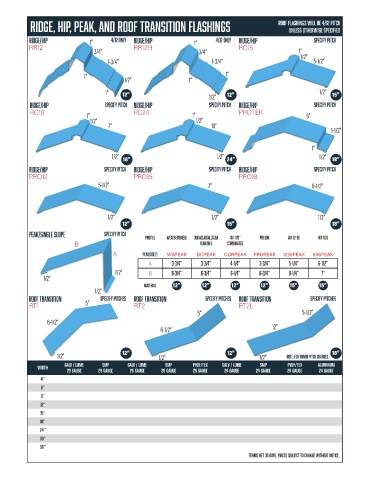

ridge, hip, peak, and roof transition flashings Roof flashings will be 4/12 pitch
unless otherwise specified
RIDGE/HIP 1” 4/12 only RIDGE/HIP 1” 4/12 only RIDGE/HIP SPECIFY PITCH
RR12 RR12H RC15
3/4” 3/4” 1”
1-3/4” 1-3/4” 1/2” 5-1/2”

1” 1/2” 1” 1”

1” 12” 1/2” 12” 1/2” 15”

RIDGE/HIP SPECIFY PITCH RIDGE/HIP SPECIFY PITCH RIDGE/HIP SPECIFY PITCH
RC18 1” RC24 1” PROTEK 6”
1/2” 1/2”
7” 10”
1-1/2”

1”
1/2” 18” 1/2” 24” 1/2” 18”

RIDGE/HIP SPECIFY PITCH RIDGE/HIP SPECIFY PITCH RIDGE/HIP SPECIFY PITCH
PRO12 PRO15 PRO18
5-1/2” 7” 8-1/2”

1/2” 1/2” 1/2”
12” 15” 18”

PEAK/SINGLE SLOPE SPECIFY PITCH PROFILE WEATHERSHIELD DURACLAD/ALLCLAD WF-7/8” PROLOK WF-12-36 WF-636
B DIAMOND CORRUGATED
A PEAK(CODE) WSPEAK DCPEAK CORPEAK PROPEAK 1236PEAK 636PEAK

A 3-3/4” 3-3/4” 4-1/4” 3-3/4” 5-1/4” 6-1/2”
1/2” B 6-3/4” 6-3/4” 6-1/4” 6-3/4” 8-1/4” 7”
1/2”
MATERIAL 12” 12” 12” 12” 15” 15”
1/2”
ROOF TRANSITION SPECIFY PITCHES ROOF TRANSITION SPECIFY PITCHES ROOF TRANSITION SPECIFY PITCHES
RT1 5” RT2 RT2L
5” 5-1/2”
6-1/2”
6-1/2” 12”

1/2” 12” 1/2” 12” 1/2” NOTE: FOR MINOR PITCH CHANGES 18”

Galv / lume smp Galv / lume smp pvdf/tex Galv / lume smp pvdf/tex aluminum
width
29 gauge 29 gauge 26 gauge 26 gauge 26 gauge 24 gauge 24 gauge 24 gauge 24 gauge
4”
6”
9”
12”
15”
18”
24”
30”
36”
terms net 30 days. prices subject to change without notice.
