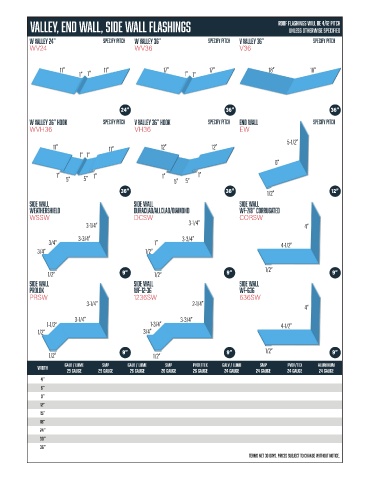

valley, end wall, side wall flashings Roof flashings will be 4/12 pitch
unless otherwise specified
W valley 24” SPECIFY PITCH W valley 36” SPECIFY PITCH V valley 36” SPECIFY PITCH
WV24 WV36 V36
11” 11” 17” 17” 18” 18”
1” 1” 1” 1”
24” 36” 36”
W valley 36” HOOK SPECIFY PITCH V valley 36” HOOK SPECIFY PITCH END WALL SPECIFY PITCH
WVH36 VH36 EW
5-1/2”
11” 11” 12” 12”
1” 1”
6”
1” 1” 1” 1”
5” 5” 5” 5”
36” 36” 1/2” 12”
SIDE WALL SIDE WALL SIDE WALL
WEATHERSHIELD DURACLAD/ALLCLAD/DIAMOND WF-7/8” CORRUGATED
WSSW DCSW CORSW
3-1/4” 3-1/4” 4”
3-3/4” 3-3/4”
3/4” 1” 4-1/2”
3/4” 1/2”
1/2”
1/2” 9” 1/2” 9” 9”
SIDE WALL SIDE WALL SIDE WALL
PROLOK WF-12-36 WF-636
PRSW 1236SW 636SW
3-1/4” 2-1/4” 4”
3-1/4” 3-3/4”
1-1/2” 1-3/4” 4-1/2”
1/2” 3/4”
1/2” 9” 1/2” 9” 1/2” 9”
Galv / lume smp Galv / lume smp pvdf/tex Galv / lume smp pvdf/tex aluminum
width
29 gauge 29 gauge 26 gauge 26 gauge 26 gauge 24 gauge 24 gauge 24 gauge 24 gauge
4”
6”
9”
12”
15”
18”
24”
30”
36”
terms net 30 days. prices subject to change without notice.
