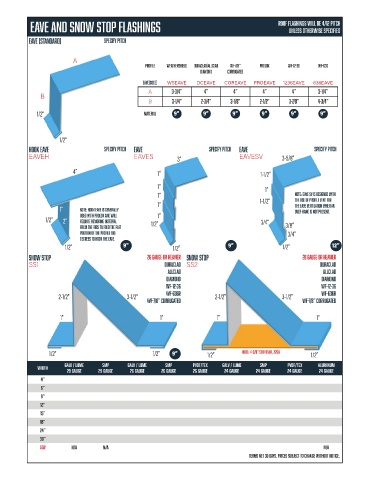

Page 63 - Westform Product Catalogue July 2025 Public

EAVE AND SNOW STOP flashings Roof flashings will be 4/12 pitch
unless otherwise specified
eave (STANDARD) SPECIFY PITCH

A
PROFILE WEATHERSHIELD DURACLAD/ALLCLAD WF-7/8” PROLOK WF-12-36 WF-636
DIAMOND CORRUGATED
EAVE(CODE) WSEAVE DCEAVE COREAVE PROEAVE 1236EAVE 636EAVE
A 3-3/4” 4” 4” 4” 4” 3-1/4”
B
B 3-1/4” 2-3/4” 3-1/8” 2-1/2” 3-7/8” 4-3/4”
1/2” MATERIAL 9” 9” 9” 9” 9” 9”

1/2”
HOOK EAVE SPECIFY PITCH EAVE SPECIFY PITCH EAVE SPECIFY PITCH
EAVEH EAVES 3” EAVESV 3-5/8”

4” 1” 1-1/2”

1” 1”
1” NOTE: EAVE SV IS DESIGNED WITH
1” 1-1/2” THE USE OF PROFILE VENT FOR
1” NOTE: HOOK EAVE IS GENERALLY THE EAVE VENTILATION WHEN AN
OVER-HANG IS NOT PRESENT.
1/2” 2” USED WITH PROLOK AND WILL 1/2” 1” 3/4”
REQUIRE REMOVING MATERIAL
FROM THE RIBS TO FOLD THE FLAT 3/8”
PORTION OF THE PROFILE 180 3/4”
DEGREES TO HOOK THE EAVE.
1/2” 9” 1/2” 9” 1/2” 12”
SNOW STOP 26 GAUGE OR HEAVIER SNOW STOP 26 GAUGE OR HEAVIER
SS1 DURACLAD SS2 DURACLAD
ALLCLAD ALLCLAD
DIAMOND DIAMOND
WF-12-36 WF-12-36
2-1/2” 3-1/2” WF-636R 2-1/2” 3-1/2” WF-636R
WF-7/8” CORRUGATED WF-7/8” CORRUGATED

1” 1” 1” 1”

1/2” 1/2” 9” 1/2” NOTE: 4-3/8” STIFFENER, 22GA 1/2”

Galv / lume smp Galv / lume smp pvdf/tex Galv / lume smp pvdf/tex aluminum
width
29 gauge 29 gauge 26 gauge 26 gauge 26 gauge 24 gauge 24 gauge 24 gauge 24 gauge
4”
6”
9”
12”
15”
18”
24”
30”
SS2 N/A N/A n/a
