Page 78 - Westform Product Catalogue July 2025 Public
P. 78

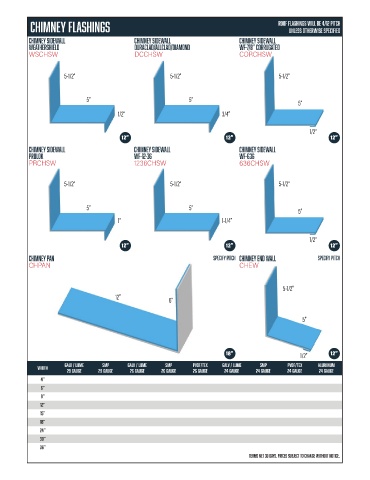

Chimney flashings Roof flashings will be 4/12 pitch
unless otherwise specified
chimney sidewall chimney sidewall chimney sidewall
weathershield DURACLAD/ALLCLAD/DIAMOND WF-7/8” Corrugated
WSCHSW DCCHSW CORCHSW
5-1/2” 5-1/2” 5-1/2”
5” 5” 5”
1/2” 3/4”
1/2”
12” 12” 12”
chimney sidewall chimney sidewall chimney sidewall
Prolok WF-12-36 WF-636
PRCHSW 1236CHSW 636CHSW
5-1/2” 5-1/2” 5-1/2”
5” 5” 5”
1” 1-1/4”
1/2”
12” 12” 12”
Chimney Pan SPECIFY PITCH Chimney ENd Wall SPECIFY PITCH
CHPAN CHEW
5-1/2”
12” 6”
5”
18” 1/2” 12”
Galv / lume smp Galv / lume smp pvdf/tex Galv / lume smp pvdf/tex aluminum
width
29 gauge 29 gauge 26 gauge 26 gauge 26 gauge 24 gauge 24 gauge 24 gauge 24 gauge
4”
6”
9”
12”
15”
18”
24”
30”
36”
terms net 30 days. prices subject to change without notice.
