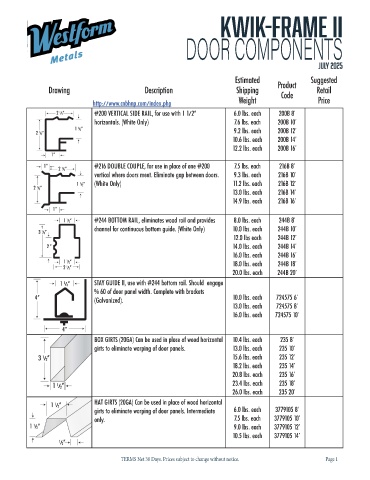

Page 113 - Westform Product Catalogue July 2025 Public

KWIK-FRAME II

DOOR COMPONENTS

JULY 2025
Estimated Product Suggested

Drawing Description Shipping Code Retail
http://www.cnbhnp.com/index.php Weight Price
#200 VERTICAL SIDE RAIL, for use with 1 1/2” 6.0 lbs. each 200B 8’
horizontals. (White Only) 7.6 lbs. each 200B 10’
9.2 lbs. each 200B 12’
10.6 lbs. each 200B 14’
12.2 lbs. each 200B 16’

#216 DOUBLE COUPLE, for use in place of one #200 7.5 lbs. each 216B 8’
vertical where doors meet. Eliminate gap between doors. 9.3 lbs. each 216B 10’
(White Only) 11.2 lbs. each 216B 12’
13.0 lbs. each 216B 14’
14.9 lbs. each 216B 16’

#244 BOTTOM RAIL, eliminates wood rail and provides 8.0 lbs. each 244B 8’
channel for continuous bottom guide. (White Only) 10.0 lbs. each 244B 10’
12.0 lbs each 244B 12’
14.0 lbs. each 244B 14’
16.0 lbs. each 244B 16’
18.0 lbs. each 244B 18’
20.0 lbs. each 244B 20’

STAY GUIDE II, use with #244 bottom rail. Should engage
% 60 of door panel width. Complete with brackets
(Galvanized). 10.0 lbs. each 724575 6’
13.0 lbs. each 724575 8’
16.0 lbs. each 724575 10’

BOX GIRTS (20GA) Can be used in place of wood horizontal 10.4 lbs. each 235 8’
girts to eliminate warping of door panels. 13.0 lbs. each 235 10’
15.6 lbs. each 235 12’
18.2 lbs. each 235 14’
20.8 lbs. each 235 16’
23.4 lbs. each 235 18’
26.0 lbs. each 235 20’
HAT GIRTS (20GA) Can be used in place of wood horizontal
girts to eliminate warping of door panels. Intermediate 6.0 lbs. each 3779105 8’
only. 7.5 lbs. each 3779105 10’
9.0 lbs. each 3779105 12’
10.5 lbs. each 3779105 14’

TERMS Net 30 Days. Prices subject to change without notice. Page 1
