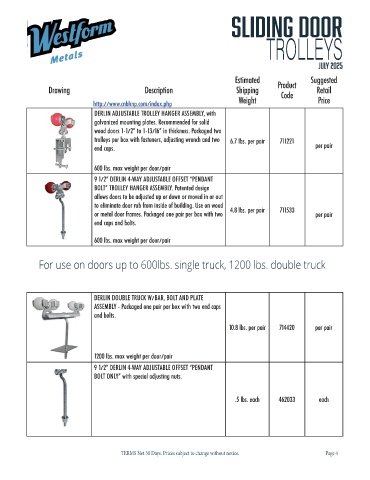

Page 116 - Westform Product Catalogue July 2025 Public

SLIDING DOOR

TROLLEYS

JULY 2025
Estimated Product Suggested

Drawing Description Shipping Code Retail
http://www.cnbhnp.com/index.php Weight Price
DERLIN ADJUSTABLE TROLLEY HANGER ASSEMBLY, with
galvanized mounting plates. Recommended for solid
wood doors 1-1/2” to 1-13/16” in thickness. Packaged two
trolleys per box with fasteners, adjusting wrench and two 6.7 lbs. per pair 711221
end caps. per pair

600 lbs. max weight per door/pair
9 1/2” DERLIN 4-WAY ADJUSTABLE OFFSET “PENDANT
BOLT” TROLLEY HANGER ASSEMBLY. Patented design
allows doors to be adjusted up or down or moved in or out
to eliminate door rub from inside of building. Use on wood
or metal door frames. Packaged one pair per box with two 4.8 lbs. per pair 711533 per pair
end caps and bolts.

600 lbs. max weight per door/pair

For use on doors up to 600lbs. single truck, 1200 lbs. double truck

DERLIN DOUBLE TRUCK W/BAR, BOLT AND PLATE
ASSEMBLY - Packaged one pair per box with two end caps
and bolts.

10.8 lbs. per pair 714420 per pair

1200 lbs. max weight per door/pair
9 1/2” DERLIN 4-WAY ADJUSTABLE OFFSET “PENDANT
BOLT ONLY” with special adjusting nuts.

.5 lbs. each 462033 each

TERMS Net 30 Days. Prices subject to change without notice. Page 4
