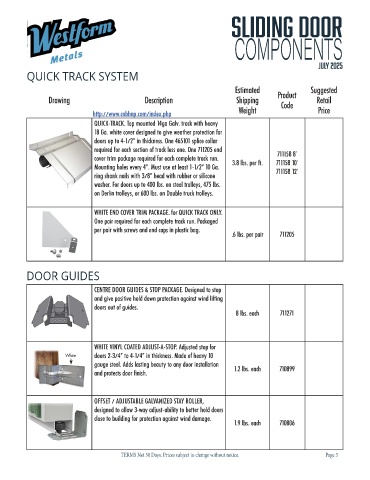

Page 115 - Westform Product Catalogue July 2025 Public

SLIDING DOOR

COMPONENTS

JULY 2025
QUICK TRACK SYSTEM

Estimated Suggested
Drawing Description Shipping Product Retail
Weight Code Price
http://www.cnbhnp.com/index.php
QUICK-TRACK. Top mounted 14ga Galv. track with heavy
18 Ga. white cover designed to give weather protection for
doors up to 4-1/2” in thickness. One 465101 splice collar
required for each section of track less one. One 711205 end 711158 8’
cover trim package required for each complete track run.
Mounting holes every 4”. Must use at least 1-1/2” 10 Ga. 3.8 lbs. per ft. 711158 10’
711158 12’
ring shank nails with 3/8” head with rubber or silicone
washer. For doors up to 400 lbs. on steel trolleys, 475 lbs.
on Derlin trolleys, or 600 lbs. on Double truck trolleys.

WHITE END COVER TRIM PACKAGE. for QUICK TRACK ONLY.
One pair required for each complete track run. Packaged
per pair with screws and end caps in plastic bag.
.6 lbs. per pair 711205

DOOR GUIDES

CENTRE DOOR GUIDES & STOP PACKAGE. Designed to stop
and give positive hold down protection against wind lifting
doors out of guides.
8 lbs. each 711271

WHITE VINYL COATED ADJUST-A-STOP. Adjusted stop for
White doors 2-3/4” to 4-1/4” in thickness. Made of heavy 10
gauge steel. Adds lasting beauty to any door installation
and protects door finish. 1.2 lbs. each 710899

OFFSET / ADJUSTABLE GALVANIZED STAY ROLLER,
designed to allow 3-way adjust-ability to better hold doors
close to building for protection against wind damage.
1.9 lbs. each 710806

TERMS Net 30 Days. Prices subject to change without notice. Page 3
