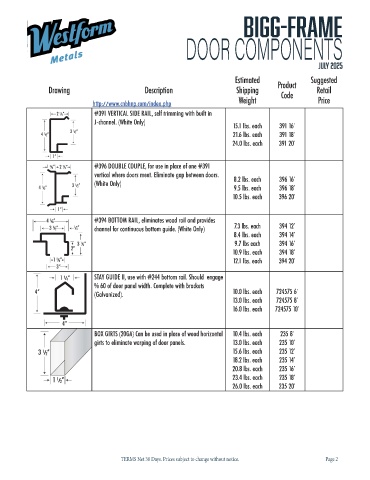

BIGG-FRAME

DOOR COMPONENTS

JULY 2025
Estimated Product Suggested

Drawing Description Shipping Code Retail
http://www.cnbhnp.com/index.php Weight Price
#391 VERTICAL SIDE RAIL, self trimming with built in
J-channel. (White Only)
15.1 lbs. each 391 16’
21.6 lbs. each 391 18’
24.0 lbs. each 391 20’

#396 DOUBLE COUPLE, for use in place of one #391
vertical where doors meet. Eliminate gap between doors.
(White Only) 8.2 lbs. each 396 16’
9.5 lbs. each 396 18’
10.5 lbs. each 396 20’

#394 BOTTOM RAIL, eliminates wood rail and provides
channel for continuous bottom guide. (White Only) 7.3 lbs. each 394 12’
8.4 lbs. each 394 14’
9.7 lbs each 394 16’
10.9 lbs. each 394 18’
12.1 lbs. each 394 20’

STAY GUIDE II, use with #244 bottom rail. Should engage
% 60 of door panel width. Complete with brackets
(Galvanized). 10.0 lbs. each 724575 6’
13.0 lbs. each 724575 8’
16.0 lbs. each 724575 10’

BOX GIRTS (20GA) Can be used in place of wood horizontal 10.4 lbs. each 235 8’
girts to eliminate warping of door panels. 13.0 lbs. each 235 10’
15.6 lbs. each 235 12’
18.2 lbs. each 235 14’
20.8 lbs. each 235 16’
23.4 lbs. each 235 18’
26.0 lbs. each 235 20’

TERMS Net 30 Days. Prices subject to change without notice. Page 2
